Quick Details

  • Processing Type: Foaming Machine
  • Condition: New
  • Product Type: foam machine
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: BOBO
  • Model Number: BDF-IV
  • Voltage: 220V, 50Hz, single phase (can be customized)
  • Power(W): 7Kw
  • Dimension(L*W*H): 1100x700x1400mm
  • Weight: 350Kg
  • Certification: CE, ISO9001
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Pressure: high pressure
  • System: hydraulic
  • Printing: customized
  • Meterial: poly + iso
  • Hose lenght: 15m
  • Max hose lenght: 90m
  • Control system: PLC control
  • Driving method: Pneumatic with air compressor
  • Max. Flux capacity: 2-8kg/min
  • Name: polyurethane foam spraying machine

Packaging & Delivery

Packaging Details polyurethane foam spraying machine is packed in wooden package.
Delivery Time Shipped in 7 days after payment
Product Description

Brief introuduction

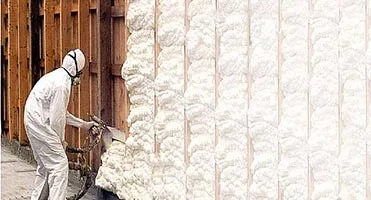

Polyurethane foam spray machine is mainly used for construction purpose, for example, wall and roof insulation. BDF-IV is a modern model, with higher heating capacity and output than BDF-II. And the max hose length of BDF-IV can be added to 90 meters.

No
Desription
Data
1
Max flux capacity
4-8kg/min
2
Max. material temperature
80 centigrade
3
Mixing pressure
5-10Mpa
4
Heating capacity
9.5kw
5
Max. hose length
90m
6
Drive method
Pneumatic with air compressor
7
Motor power
380v, 50/60HZ, 3 phase
8
Demension
800*700*1250mm
9
Weight
157kg
10
Standard configuration
main machine, meterial pump, spaying gun, 15m long heating hose
Application
Key parts

Spray gun

BDF-IV is equipped with modern PK3 gun, which is maintained with low cost for stable performance. And it is easy for operation.

Connecting hose

The connecting hose is used to connect the heating hose to spray gun, which is made from high pressure rubber hose. With the connection hose, the operation of spray gun will be more light and convenient .

Heating hose

The heating hose is used to heat the raw material during hose flowing before spraying, which can keep the right temperature to get good foaming result. One sets heating hose including the two hose for Poly and ISO, and the heating wire, control cable inside, will be offered together with machine as standard configuration. The standard length is 15 meter long, which can be extended as per your requirements.

Feeding pump

The spray foam machine doesn't equip the material tank for portable application. So the feeding pumps are necessary to suck up the material from big steel drum for continuous work. All these pump are home make with quality control to ensure the long time stable work.

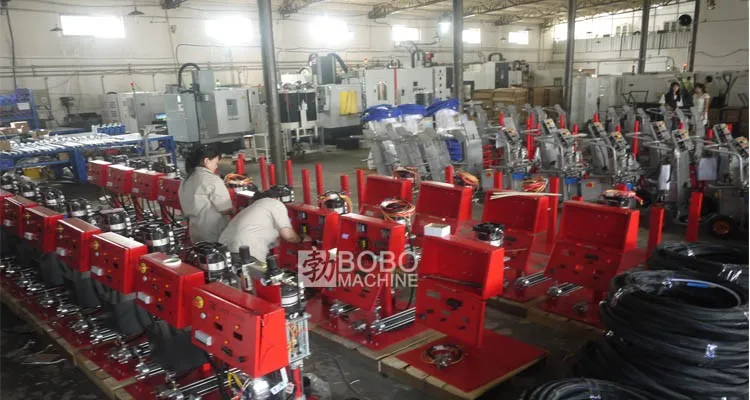

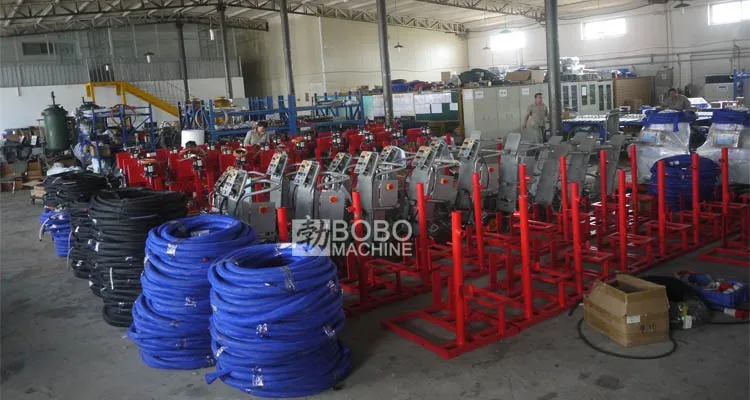

Our Workshop

The key parts are manufactured by our imported machining center for better quality control and in time shipment.

Packing & Delivery
Packaging
Size
900 (L) * 800 (W) * 1350 (D)
Weight
250kg

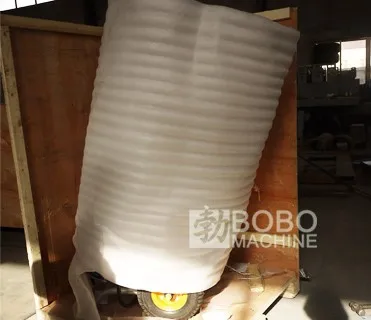

Packaging Details
Standard wooden package for shipping. And we will deliver the machine to requested place within 7 days.
