Quick Details

  • Processing Type: Foaming Machine
  • Condition: New
  • Product Type: Polyurethane foam machine
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: BOBO
  • Model Number: GZY-1000
  • Voltage: Customized
  • Power(W): 2*9kw
  • Dimension(L*W*H): 1370x1350x2250mm
  • Weight: 1200kg
  • Certification: ISO
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: PU foam product making
  • Control system: PLC+Touch Screen
  • Pressure: Low pressure
  • Painting and appearance: Standard or customized
  • Material: POLY & ISO
  • Cleaning system: Automatic cleaning
  • Spare parts needed: Chiller/ cooling system
  • Injection type: horizontal inecting or vertical injecting
  • Feeding: optional transfer pump
  • Item: Polyurethane foam machine

Packaging & Delivery

Packaging Details Polyurethane foam machine is packed in wooden case.
Delivery Time Shipped in 25 days after payment
Product Description

Brief Introduction

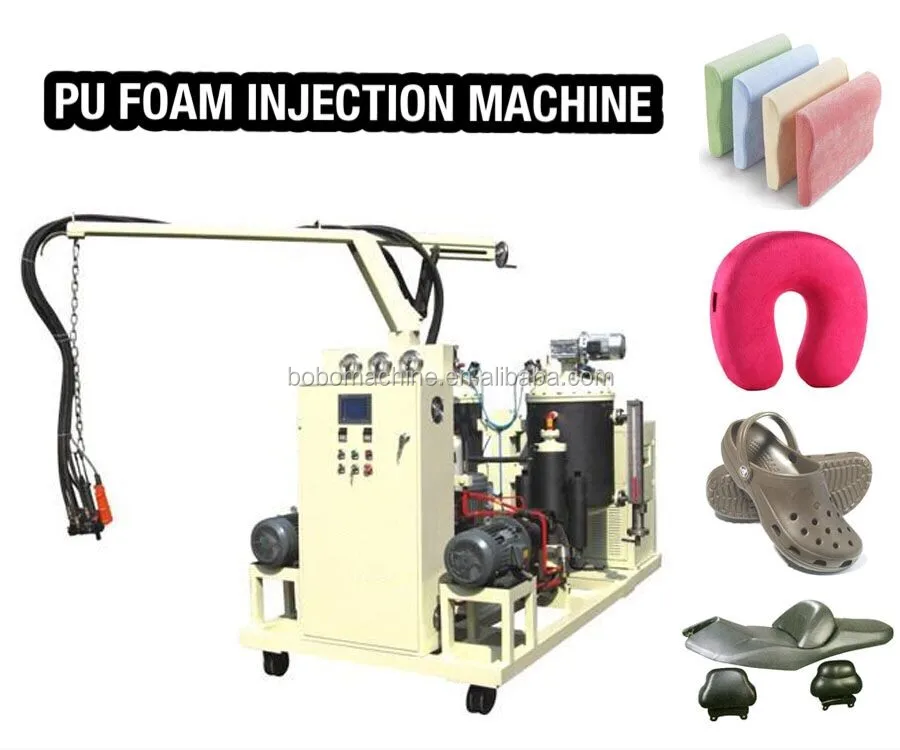

Low pressure foam injection machine GZY-1000 is mainly used for small and medium sized foam object injection including pillow, car seats, decoratives furnitures ect  . It is with automatic cleaning and the operation is easy. And usually it works with a chiller.

No
Description
Item
1
Model
GZY-1000
2
Injection capacity range
50g/s-200kg/s (can be customized)
3
Arm
2.3 meters ( can be customized)
4
Rated power
30KW
5
Temperature control power
2*9KW
6
Tank capacity
250L ( can be customized)
7
Mixing system rotation speed
2800-5000 r/min
8
Compressed air required
Dry, no oil, 0.6-0.8MPa
9
Motor power
380V, 50Hz, 3 phase ( can be customized)
10
Dimension
3600mm x 1250mm x 2300mm
11
Weight
1250Kg

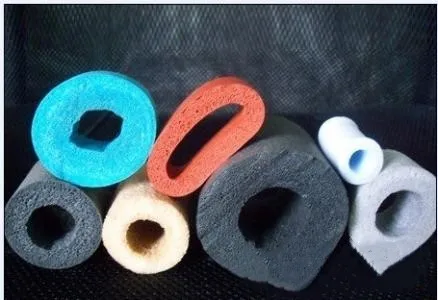

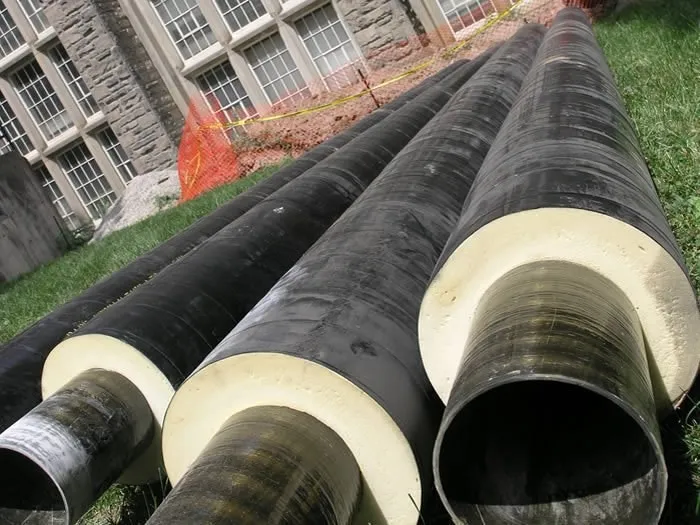

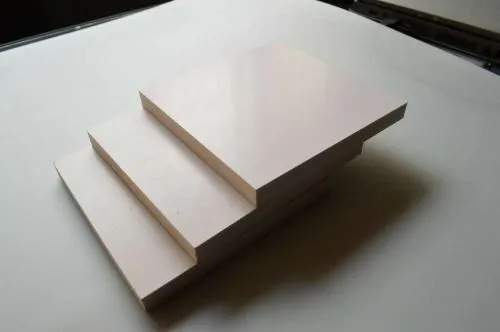

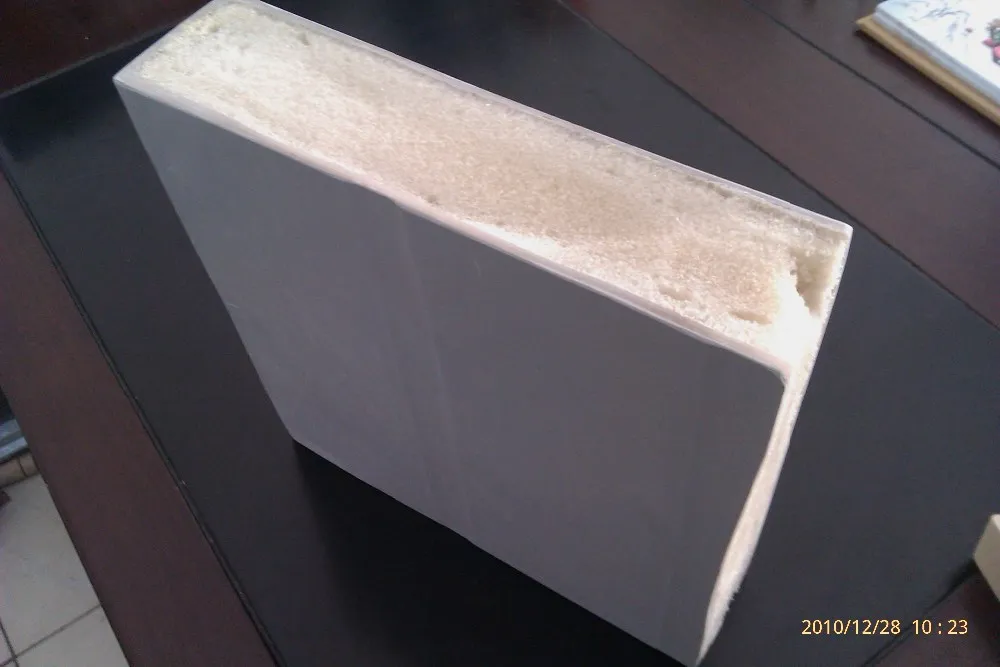

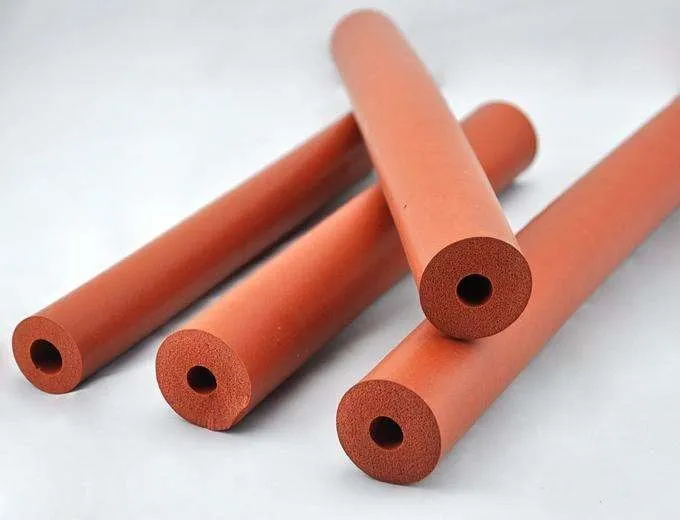

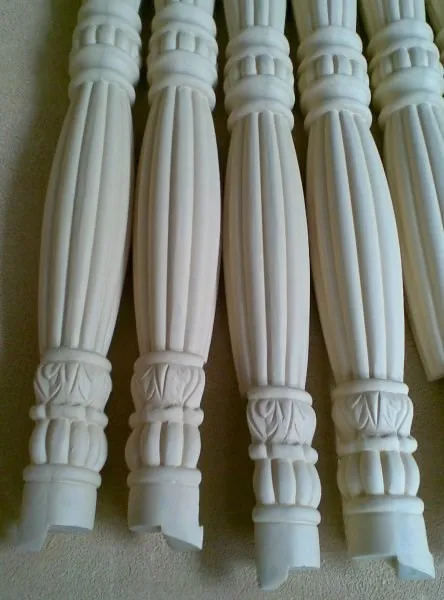

Application
Detailed Images

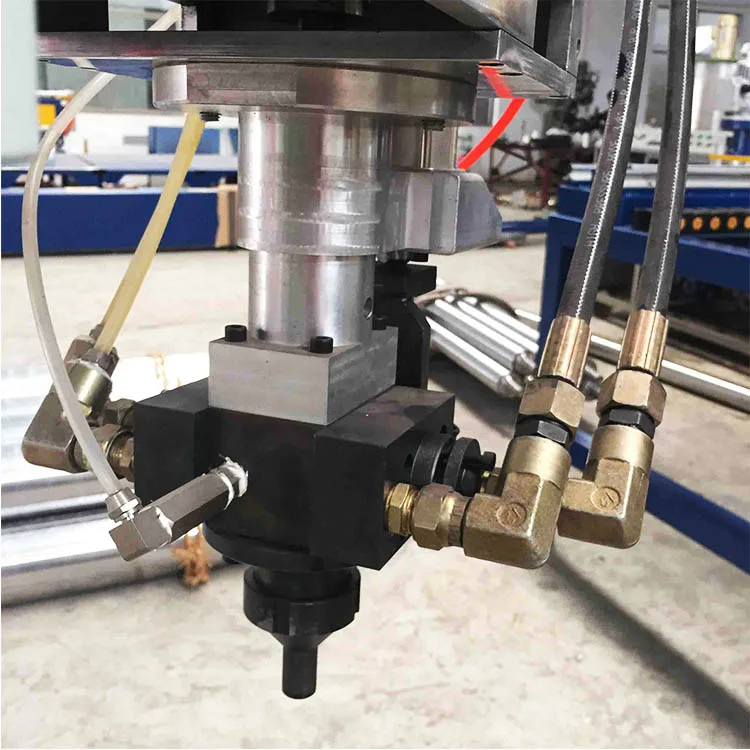

Mixing head

The mixing head adopts floating mechanical seals, and its high shear mixing screw head, which can mix two materials with better performance.

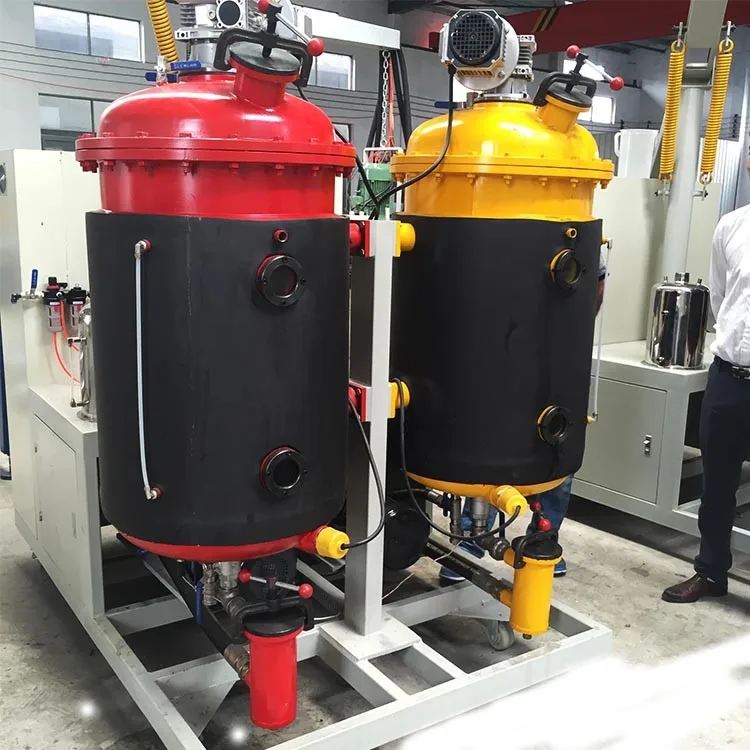

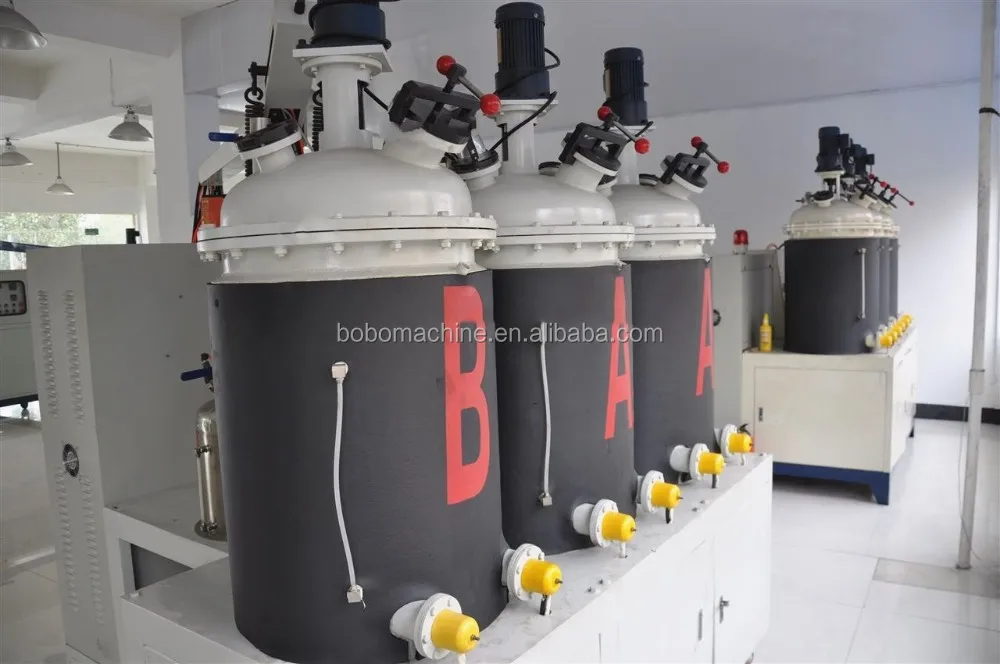

Material tank

Two-sandwich heating tank, plus insulation, heating quickly, low energy consumption.

Material of the tank: SS304
Size of feeding flange: φ150
Capacity: 250L
Quantity: 2

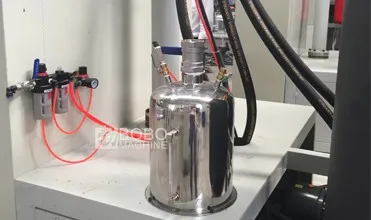

Cleaning tank

Material: stainless steel

Capacity: 20L

Feeding flange: φ110 The outlet is in the bottom side.

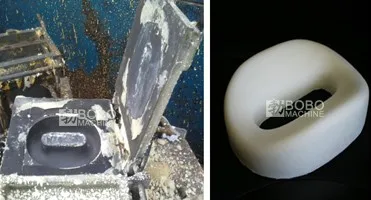

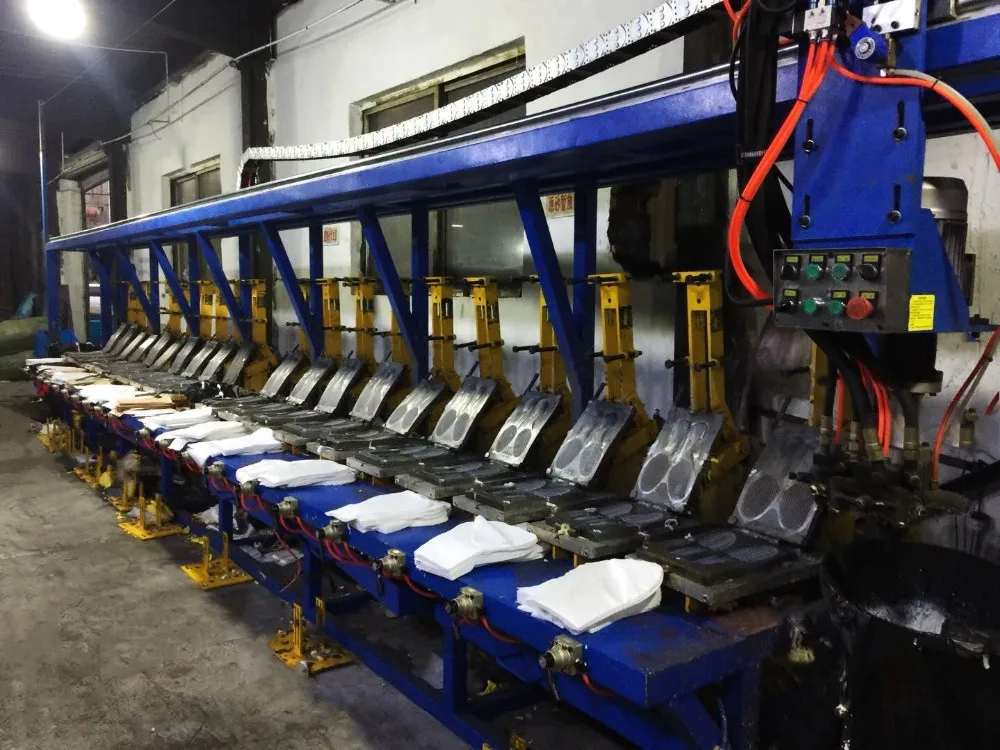

About the mould

     The foam injection machine can be used for any kind of foam product with a mould and foam material mixed with required ratio.

      We  can custimize mould for our clients, and you should provide us with a detailed drawing for your product, or a sample.

      And we also supply drum/barrel foam material.




Procedure

It's a general procedure of surfing plate making. Prepare the mould and inject the material into the mould and after seconds (differs) the material gets hard and comes into shape, it's done.

Packing & Delivery

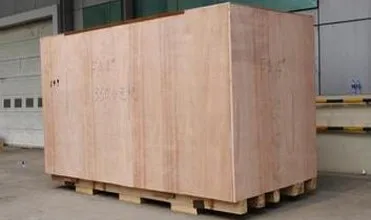

Packaging
Size
4100*1350*2400mm
Weight
1.35T



Packaging Details
    The machine is installed completely before shipment, so the package is a little bit high. When you get the machine, it can be put into use after wire connection.
    Standard package with waterproofing protection for shipping.
Contact us

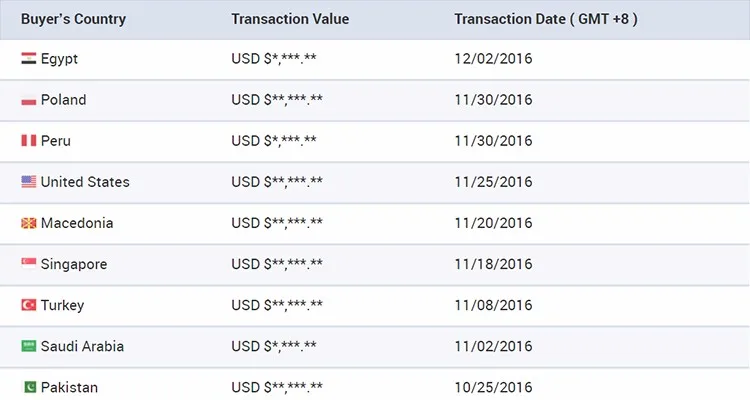

Transaction History of the Supplier
