Quick Details

  • Processing Type: Foaming Machine
  • Condition: New
  • Product Type: high pressure spray foaming machine
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: BOBO
  • Model Number: BDF-IV
  • Voltage: 380V
  • Power(W): 9.5kw
  • Dimension(L*W*H): 800x700x1250mm
  • Weight: 157kg
  • Certification: CE, high pressure spray foaming machine
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Driven system: pneumatic
  • Pressure: High pressure
  • Painting: Customized
  • Material: POLY & ISO
  • Cleaning system: Pneumatic cleaning
  • Hose length: 15m(standard)
  • Max. hose length: 90m
  • Mixing ratio: 1:1, fixed ratio
  • Drive method: Pneumatic motor with air compressor
  • Item: high pressure spray foaming machine

Packaging & Delivery

Packaging Details High pressure spray foaming machine is packed in Wooden package
Delivery Time Shipped in 7 days after payment

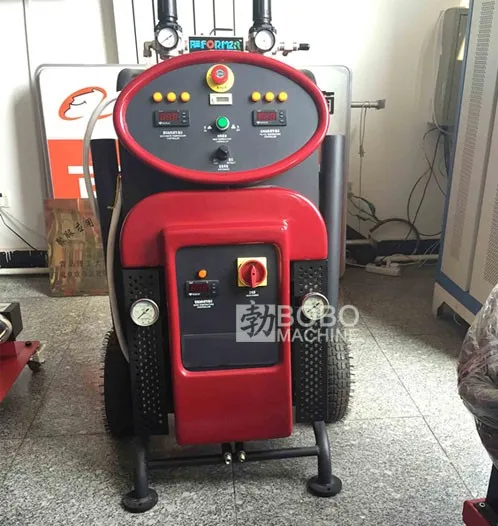

Product Description

Description

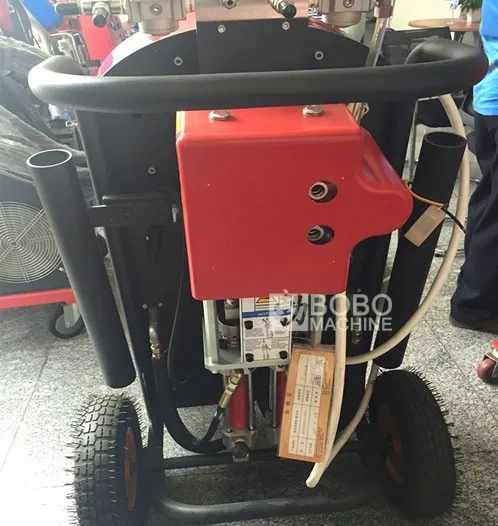

Polyurethane foam spray machine is mainly used for construction purpose, for example, wall and roof insulation. BDF-IV is a modern model, with higher heating capacity and output than BDF-II. And the max hose length of BDF-IV can be added to 90 meters.

No
Description
Data
1
Max flux capacity
4-8kg/min
2
Max. material temperature
80 centigrade
3
Mixing pressure
5-10Mpa
4
Heating capacity
9.5kw
5
Max. hose length
90m
6
Drive method
Pneumatic with air compressor
7
Motor power
380v, 50/60HZ, 3 phase
8
Demension
800*700*1250mm
9
Weight
157kg
10
Standard configuration
main machine, meterial pump, spaying gun, 15m long

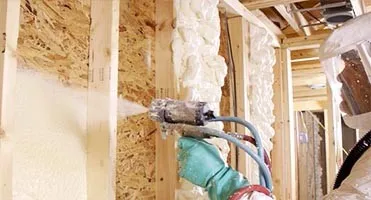

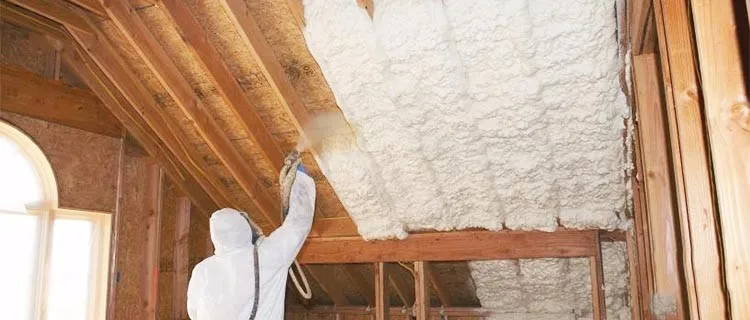

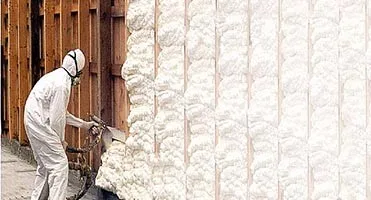

Application

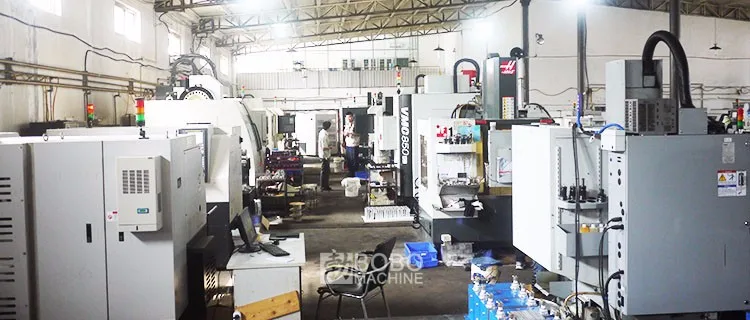

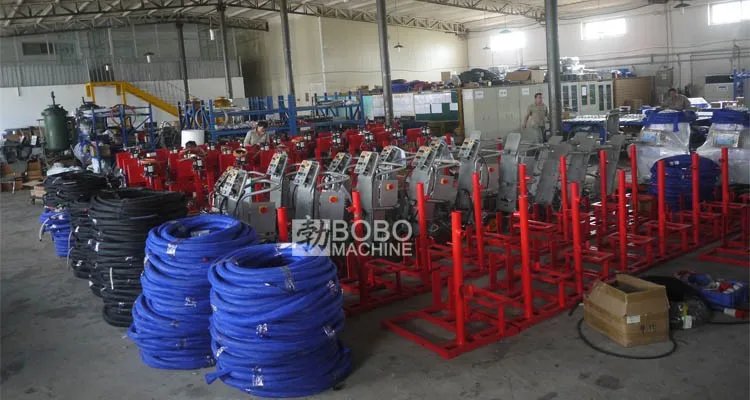

Our workshop
Spare parts

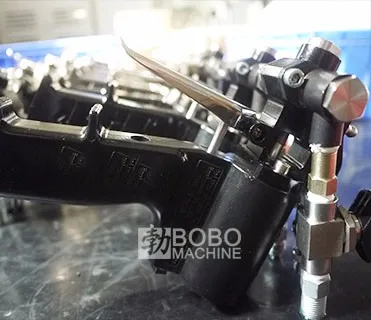

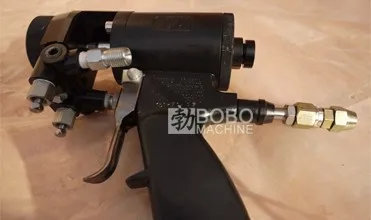

Spray gun

BDF-IV is equipped with modern PK3 gun, which is maintained with low cost for stable performance. And it is easy for operation.

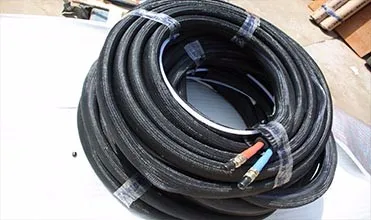

Heating hose

The heating hose is used to heat the raw material during hose flowing before spraying, which can keep the right temperature to get good foaming result..

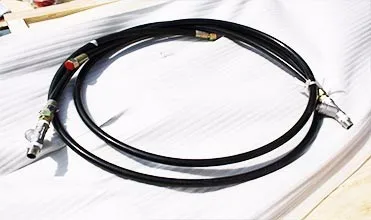

Connecting hose

The connecting hose is used to connect the heating hose to spray gun, which is made from high pressure rubber hose. With the connection hose, the operation of spray gun will be more light and convenient .

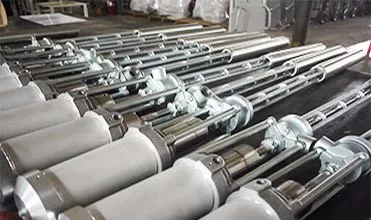

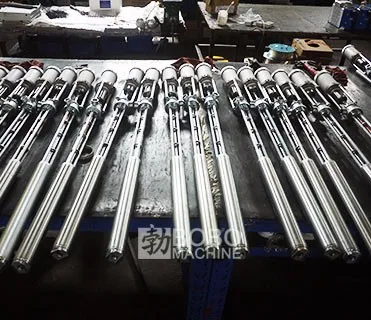

Feeding pump

The spray foam machine doesn't equip the material tank for portable application. So the feeding pumps are necessary to suck up the material from big steel drum for continuous work.

FAQ

1. Can spray foam machine be 220V, 60Hz?

Re: We can customize the electric system according to your requirements.

2. If I buy the spray foam machine, do I need to buy any other parts?

Re: We will provide all the necessary accessories going with the machine including spray gun heating hose, material pump etc., that means the machine is ready to work when you receivw it.

3. Can the heating hose length be extended?

Re: Yes, the heating hose length can be extended to 60/90m for different machines, and we will provide one set standard heating hose going with the machine, which length is 15m.

4. Can you provide the raw material along with the machine?

Re: We can supply the raw materials for fire proof, wall , roof insultion.

5. What’s the difference between polyurethane spray foam machine and polyurea spray foam machine?

Re: The polyurethane spray foam machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose, and the polyurea spray foam machine is mainly used for wall, roof, refrigerator, tank body, pipeline protection coat for abrasive surface, waterproof, antiseptic purpose.

6. What’s the HS code of the spray foam machine.

Re: The HS code of the machine is 8477800000.
